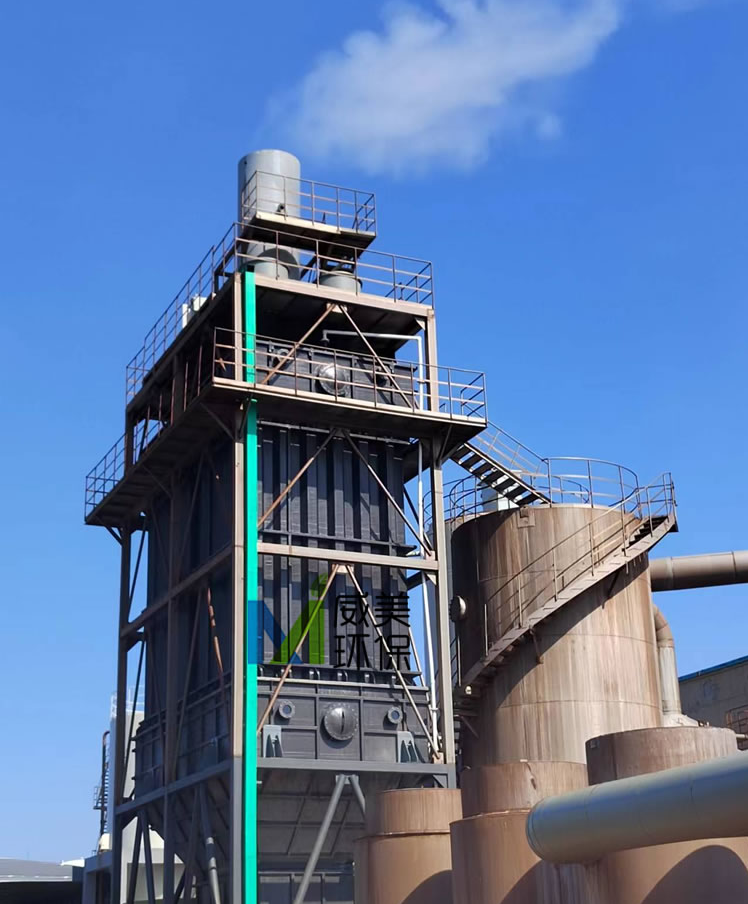

The flue gas volume of the wet electrostatic precipitator in a brick and tile tunnel kiln in Shanxi is no more than 100,000 m³/h, and the designed gas velocity is 1 m/s.

This set of equipment is a wet electrostatic precipitator for the 200,000 m³/h coal gangue flue gas of a brick and tile tunnel kiln in Shandong. The equipment is installed behind the tower. It utilizes high - voltage pulsed direct current and an electric field to drive the fine dust in the flue gas, accelerating its settlement on the anode surface to remove dust particles, fog droplets, aerosols and some odors from the flue gas, thereby achieving the purification of the flue gas.

The dust content of the flue gas at the inlet of this wet electrostatic precipitator is 200 mg/m³, the dust content of the flue gas at the outlet is ≤ 15 mg/m³, and the dust removal efficiency is ≥ 92%. It has passed the acceptance inspection of the local environmental protection department.

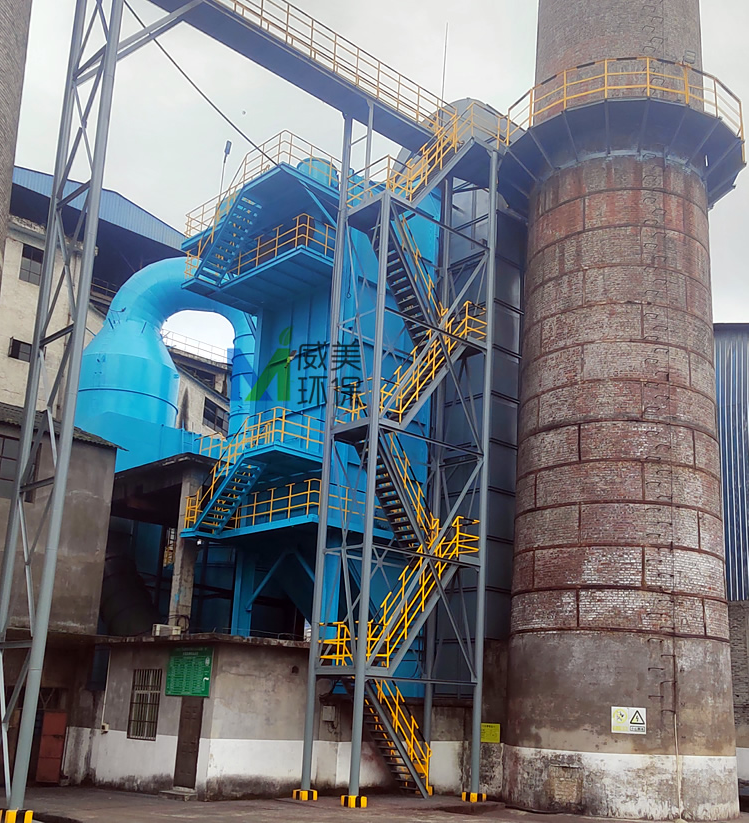

The above picture shows the project of a fiberglass wet electrostatic precipitator for brick - making flue gas undertaken by our company. This set of wet electrostatic precipitator is designed for a gas volume of 2 × 200,000 m³/h. The dust content of the flue gas at the inlet is 200 mg/m³, and the flue gas temperature is 70 °C. The dust at the outlet of the precipitator is required to be lower than 30 mg/m³. Currently, standard - compliant emission has been achieved.

鋅焙砂及氯化鋅煙氣濕式靜電除霧器發貨內蒙，下圖為發貨現場

兩套濕式靜電除霧器其中一套針對為鋅焙砂煙氣進行深度凈化，煙氣量50000m³/h，設計氣速為1m/s，設計除塵效率為90%以上。另一套濕式電除塵（霧）器針對為氯化鋅蒸發煙氣進行深度凈化，煙氣量36000m³/h，設計基礎0.9m/s，設計除塵效率為90%以上。我司負責兩套電除霧設備本體(包括高壓電源控制柜至本體以內的電氣、電纜)的制作、運輸、安裝及調試，后續將跟進濕電設備的的安裝及調試進展情況。

該套濕式靜電除霧器針對為鋅焙砂煙氣進行深度凈化

該套濕式電除塵（霧）器針對氯化鋅蒸發煙氣進行深度凈化

左上為河北威美鋅焙砂煙氣冶理案例

河北威美環保研發的濕式靜電除霧器是一種用來處理含微量粉塵和微顆粒的高效節能的煙氣凈化設備，主要用來去除含濕氣體中的塵、酸霧、水滴、氣溶膠、臭味、PM2.5等有有害物質，具有收塵效率高，處理煙氣量大，使用壽命長，維護費用低等優點，是治理大氣粉塵污染的理想設備，在當前國內外對環保要求越來越高的情況下得到了廣泛的應用。

此次發貨的濕電是為河北一家集化肥、化工于一體的綜合性化工企業定制。該套濕式電除塵器應用于該公司2萬噸氰尿酸項目。河北威美負責高壓靜電除霧器的本體及其輔助設備系統的功能設計、制造、供貨、安裝及調試，該設備煙氣量25000m³/h，煙氣溫度 ≤60℃ ，設計流速0.5m/s。

以下是氰尿酸煙氣深度凈化高壓靜電濕式電除塵器發貨現場圖，

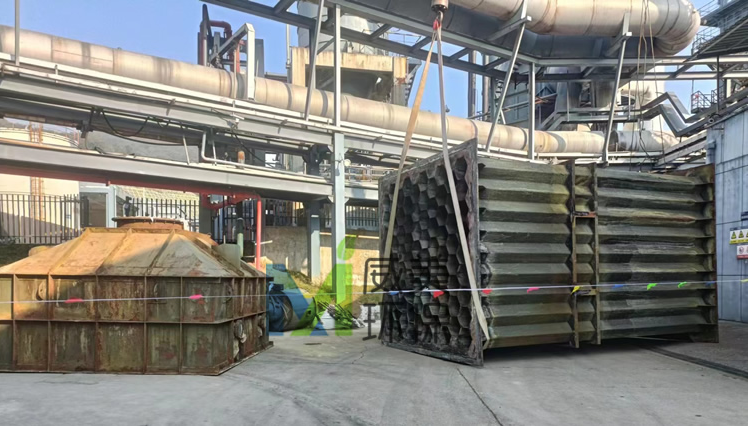

氰尿酸煙氣深度凈化高壓靜電濕式除塵器陽極發貨

煙氣深度凈化高壓靜電濕式除塵器殼體及配件發貨

       該電除霧設備處理煙氣量70000m3/h，設計氣速1.14m/s。目前河北威美環保已有多臺電除霧器運行在全國各大磚廠，幫助制磚企業實現*低排放，如果您的企業正在面臨*低排放改造，請詳詢威美的技術人員，將會有專門的工程師與您對接，為您的企業量身定制低排方案，詳詢18633235200

電除霧器陽極系統發貨

電除霧器殼體發貨
